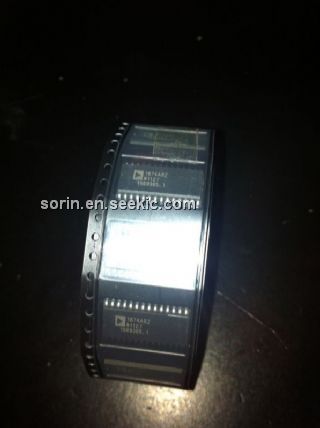

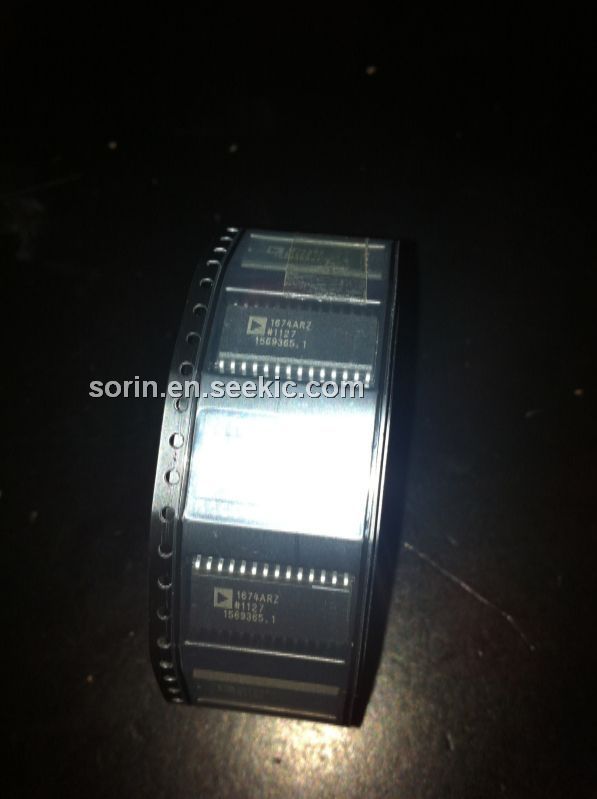

AD1674ARZ

AD1674ARZ, 12-bit analog to digital converter, SOP, 0 to +16.5V, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 20 :	3.00 / Piece
20 ~ 30 :	3.00 / Piece
30 ~ 40 :	3.00 / Piece

PartNumber:: AD1674ARZ

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Rose's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-11

From Other Seller

Part Number:AD1674ARZ
US $3.00 - 3.00
Quantity:

piece

Product Summary

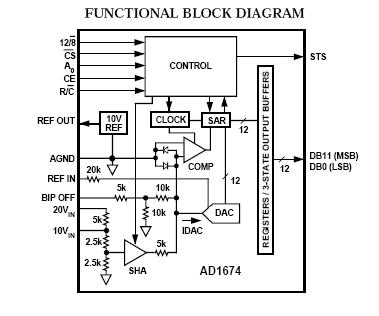

The AD1674ARZ is a complete, multipurpose, 12-bit analog to digital converter, consisting of a user-transparent onboard sample-and-hold amplifier (SHA), 10 volt reference, clock and three-state output buffers for microprocessor interface. The AD1674ARZ is pin compatible with the industry standard AD574A and AD674A, but includes a sampling function while delivering a faster conversion rate. The on-chip SHA has a wide input bandwidth supporting 12-bit accuracy over the full Nyquist bandwidth of the converter.

Parametrics

AD1674ARZ absolute maximum ratings: (1)VCC to Digital Common: 0 to +16.5V; (2)VEE to Digital Common: 0 to -16.5V; (3)VLOGIC to Digital Common: 0V to +7V; (4)Analog Common to Digital Common: ±1V; (5)Digital Inputs to Digital Common: -0.5V to VLOGIC +0.5V; (6)Analog Inputs to Analog Common: VEE to VCC; (7)20 VIN to Analog Common: VEE to +24 V; (8)REF OUT: Indefinite Short to Common.

Features

AD1674ARZ features: (1)Complete Monolithic 12-Bit 10 μs Sampling ADC; (2)On-Board Sample-and-Hold Amplifier; (3)Industry Standard Pinout; (4)8- and 16-Bit Microprocessor Interface; (5)AC and DC Specified and Tested; (6)Unipolar and Bipolar Inputs; (7)±5 V, ±10 V, 0V to 10V, 0V to 20 V Input Ranges; (8) Commercial, Industrial and Military Temperature Range Grades; (9) MIL-STD-883 and SMD Compliant Versions Available.
