Product Summary

The OPA111AM is a precision monolithic dielectrically isolated FET operational amplifier. Outstanding performance characteristics allow its use in the most critical instrumentation applications. The applications of OPA111AM are precision instrumentation, data acquisition, test equipment optoelectronics, medical equipment-cat scanner, radiation hard equipment.

Parametrics

OPA111AM absolute maximum ratings: (1)Supply:±18VDC; (2)Internal Power Dissipation:750mW; (3)Differential Input Voltage:±36VDC; (4)Input Voltage Range:±18VDC; (5)Storage Temperature Range:–65℃ to +150℃; (6)Operating Temperature Range:–55℃ to +125℃; (7)Lead Temperature (soldering, 10s):+300℃; (8)Output Short Circuit Duration:Continuous; (9)Junction Temperature:+175℃.

Features

OPA111AM features: (1)low noise: 100% Tested, 8nV√Hz max(10kHz); (2)low bias current: 1pA max; (3)low offset: 250μV max; (4)low drift: 1μV/℃ max; (5)high open-loop gain: 120dB min; (6)high common-mode rejection:100dB min.

Diagrams

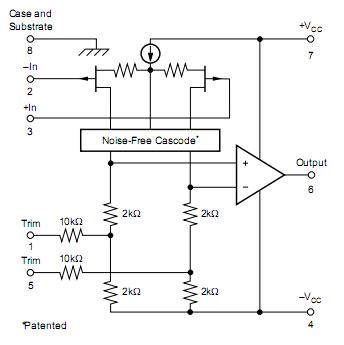

OPA111AM circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OPA111AM
OPA111AM
Texas Instruments
Operational Amplifiers - Op Amps Low Noise Prec Difet Op Amp
Data Sheet
0-1: $21.32
1-25: $18.13
25-100: $16.84
100-250: $15.45
