Product Summary

The ADL5601ARKZ-R7 is a broadband, 15 dB linear amplifier that operates at frequencies up to 4.0 GHz. The device can be used in a wide variety of cellular, cable television (CATV), military, and instrumentation equipment. The ADL5601ARKZ-R7 provides the highest dynamic range available from an internally matched gain block. This is accomplished by providing extremely low noise figures and very high OIP3 specifications simultaneously, across the entire 4.0 GHz frequency range.

Parametrics

ADL5601ARKZ-R7 absolute maximum ratings:(1)Supply Voltage, VCC:6.5 V ; (2)Input Power (Referred to 50 Ω):16 dBm ; (3)Internal Power Dissipation (Paddle Soldered):600 mW; (4)θJA (Junction to Air):30.7°C/W; (5)θJC (Junction to Paddle):5.0°C/W; (6)Maximum Junction Temperature: 150°C; (7)Lead Temperature (Soldering, 60 sec):240°C ; (8)Operating Temperature Range:-40°C to +85°C; (9)Storage Temperature Range :-65°C to +150°C.

Features

ADL5601ARKZ-R7 features:(1)Fixed gain of 15 dB ; (2)Operation from 50 MHz to 4.0 GHz ; (3)Highest dynamic range gain block ; (4)Input/output internally matched to 50 Ω ; (5)Integrated bias control circuit ; (6)OIP3 of 43.0 dBm at 900 MHz ; (7)P1dB of 19.0 dBm at 900 MHz ; (8)Noise figure of 3.7 dB at 900 MHz ; (9)Single 5 V power supply ; (10)Low quiescent current of 83 mA ; (11)Thermally efficient SOT-89 package ; (12)ESD rating of ±1.5 kV (Class 1C) .

Diagrams

ADL5601ARKZ-R7 Pin Configuration

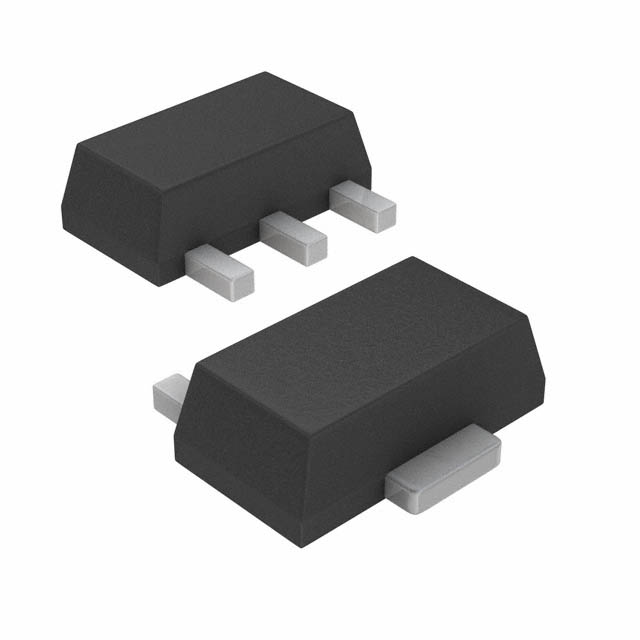

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADL5601ARKZ-R7
ADL5601ARKZ-R7

IC AMP GAIN BLOCK 15DB SOT89-3
Data Sheet
0-1: $2.72
1-10: $2.44
10-25: $2.19
25-100: $1.99
100-250: $1.80
250-500: $1.62
