Product Summary

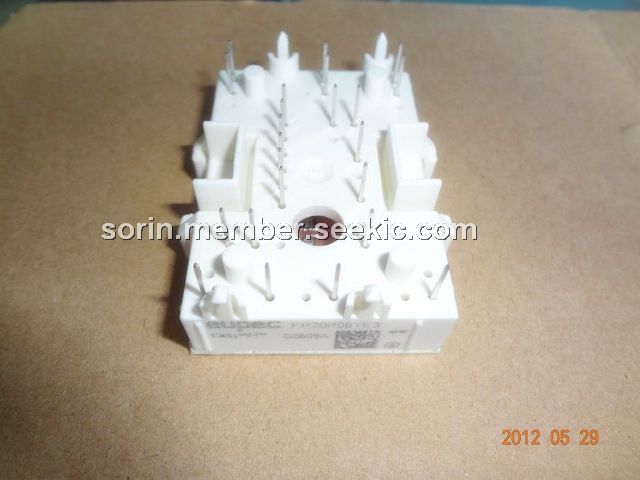

The FP20R06YE3 is an IGBT-inverter.
Parametrics
FP20R06YE3 absolute maximum ratings: (1)Collector-emitter voltage: 600V; (2)DC-collctor current: 27A; (3)Repetitive peak collector current: 40A; (4)Total power dissipation: 770W; (5)Gate-emitter peak voltage: ±20V.
Features
FP20R06YE3 characteristics: (1)Collector-emitter saturation voltage: 200V; (2)Gate threshold voltge: 65V; (3)Gate charge: 0.2μC; (4)Internal gate resistor: 0Ω; (5)Input capacitance: 110nF.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FP20R06YE3 |
Infineon Technologies |
IGBT Modules N-CH 600V 27A |
Data Sheet |
|
|
||||||||
|
FP20R06YE3_B4 |
Infineon Technologies |
IGBT Modules |
Data Sheet |
|
|
||||||||
