Product Summary

The LT1358CN8 is a dual and quad low power high speed operational amplifier with outstanding AC and DC performance. The LT1358CN8 features much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The applications of the LT1358CN8 include Wideband Amplifiers, Buffers, Active Filters, Data Acquisition Systems, Photodiode Amplifiers.

Parametrics

LT1358CN8 absolute maximum ratings: (1)Total Supply Voltage (V+ to V–): 36V; (2)Differential Input Voltage (Transient Only): ±10V; (3)Input Voltage: ±VS; (4)Output Short-Circuit Duration: Indefinite; (5)Operating Temperature Range: -40℃ to 85℃; (6)Specified Temperature Range: -40℃ to 85℃; (7)Maximum Junction Temperature (See Below) Plastic Package: 150℃; (8)Storage Temperature Range: -65℃ to 150℃; (9)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1358CN8 features: (1)25MHz Gain Bandwidth; (2)600V/μs Slew Rate; (3)2.5mA Maximum Supply Current per Amplifier; (4)Unity-Gain Stable; (5)C-Load Op Amp Drives All Capacitive Loads; (6)8nV/√Hz Input Noise Voltage; (7)600μV Maximum Input Offset Voltage; (8)500nA Maximum Input Bias Current; (9)120nA Maximum Input Offset Current; (10)20V/mV Minimum DC Gain, RL=1k; (11)115ns Settling Time to 0.1%, 10V Step; (12)220ns Settling Time to 0.01%, 10V Step; (13)±12.5V Minimum Output Swing into 500Ω; (14)±3V Minimum Output Swing into 150Ω; (15)Specified at ±2.5V, ±5V, and ±15V.

Diagrams

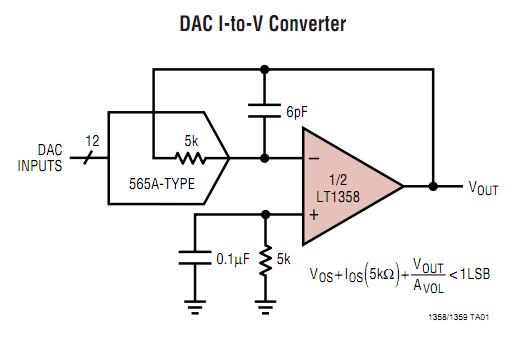

LT1358CN8 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

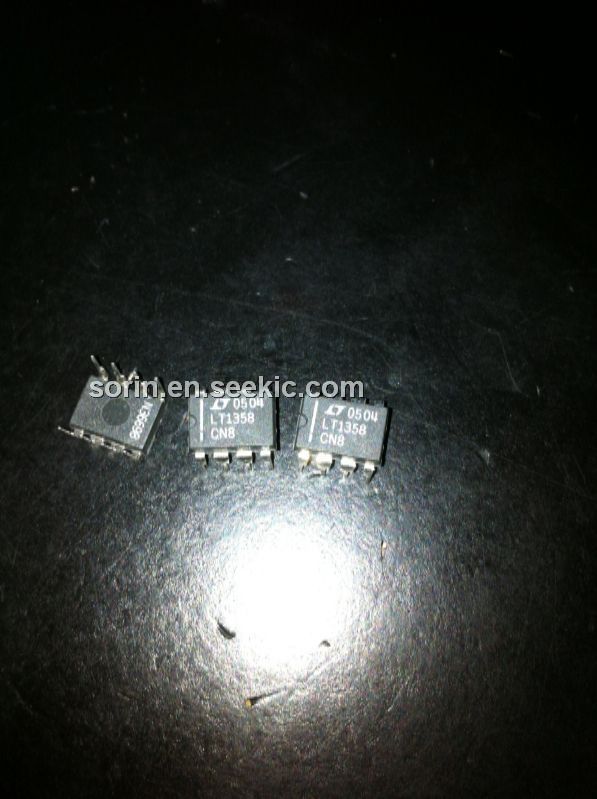

LT1358CN8
LT1358CN8


IC OP-AMP HI-SPD 25MHZ DUAL 8DIP

Data Sheet

0-1750: $2.46
LT1358CN8#PBF
LT1358CN8#PBF


IC OP-AMP HI-SPD 25MHZ DUAL 8DIP

Data Sheet

0-1: $4.37
1-25: $2.90
25-100: $2.46
