Product Summary
The M24C32W6 is an I2C-compatible electrically erasable programmable memory (EEPROM). The M24C32W6 is organized as 8192 × 8 bits (M24C64) and 4096 × 8 bits (M24C32). I2C uses a two-wire serial interface, comprising a bi-directional data line and a clock line. The device carries a built-in 4-bit Device Type Identifier code (1010) in accordance with the I2C bus definition. The M24C32W6 behaves as a slave in the I2C protocol, with all memory operations synchronized by the serial clock. Read and Write operations are initiated by a Start condition, generated by the bus master.
Parametrics
M24C32W6 absolute maximum ratings: (1)TSTG Storage Temperature: -65 to 150℃; (2)TLEAD Lead Temperature during Soldering: See note 1℃; (3)VIO Input or Output range: -0.50 to 6.5 V; (4)VCC Supply Voltage: -0.50 to 6.5 V; (5)VESD Electrostatic Discharge Voltage (Human Body model)2: -4000 to 4000 V.
Features
M24C32W6 features: (1)Two-Wire I2C Serial Interface Supports 400kHz Protocol; (2)Single Supply Voltage: 2.5 to 5.5V for M24Cxx-W; (3)Write Control Input; (4)BYTE and PAGE WRITE (up to 32 Bytes); (5)RANDOM and SEQUENTIAL READ Modes; (6)Self-Timed Programming Cycle; (7)Automatic Address Incrementing; (8)Enhanced ESD/Latch-Up Protection; (9)More than 1 Million Erase/Write Cycles; (10)More than 40-Year Data Retention.

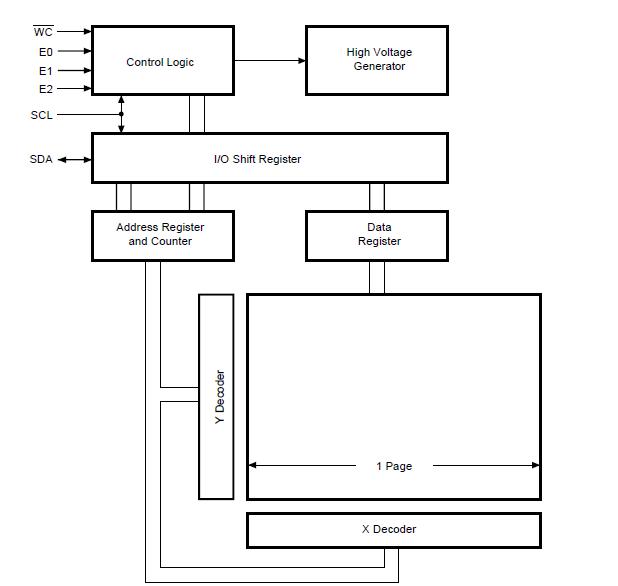

Diagrams
