Product Summary
The PI90LV022 and PI90LVB022 are differential line drivers and receivers that use Low Voltage Differential Signaling (LVDS) to achieve signaling rates as high as 650 Mbps. The receiver outputs can be switched to either or both drivers through the multiplexer control signals S0 and S1. This allows the flexibility to perform splitter or signal routing functions with a single device.
The LVDS standard provides a minimum differential output voltage magnitude of 247mV into a 100 Ohm load and receipt of 100mV DC signals with up to 1V of ground potential difference between a transmitter and receiver. The PI90LVB022 doubles the output drive current to achieve Bus LVDS signaling levels with a 50 Ohm load. A doubly terminated Bus LVDS line enables multi-point configurations. Switching between channels does not create false transitions on the outputs.
The intended application of these devices and signaling technique is for both point-to-point base-band (PI90LV022) and multipoint (PI90LVB022) data transmissions over controlled impedance media.
Welcome inquiry!!!
www.minghong.com
Features
Meets or Exceeds the Requirements of ANSI TIA/EIA-644-1995
Designed for Signaling Rates up to 650 Mbit/s (325 MHz)
Operates from a 3.3V Supply: –40°C to +85°C
Low Voltage Differential Signaling with Output Voltages of ±350mV into:
- 100 Ohm load (PI90LV022)
- 50 Ohm load Bus LVDS Signaling (PI90LVB022)
Accepts ±350mV differential inputs
Wide common mode input voltage range: 0.2V to 2.7V
Output drivers are high impedance when disabled or when VCC≤ 1.5V
Inputs are open, short, and terminated fail safe
Propagation Delay Time: 3.5ns
ESD protection is 10kV on bus pins
Bus Pins are High Impedance when disabled or with VCC less than 1.5V
TTL Inputs are 5V I/O Tolerant
Power Dissipation at 400Mbit/s less than 150mW
Industrial temperature rating
Packaging (Pb-free & Green available):
- 16-pin SOIC (W)
- 16-pin TSSOP (L)
Diagrams

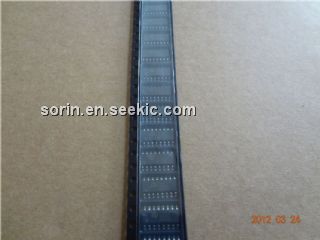

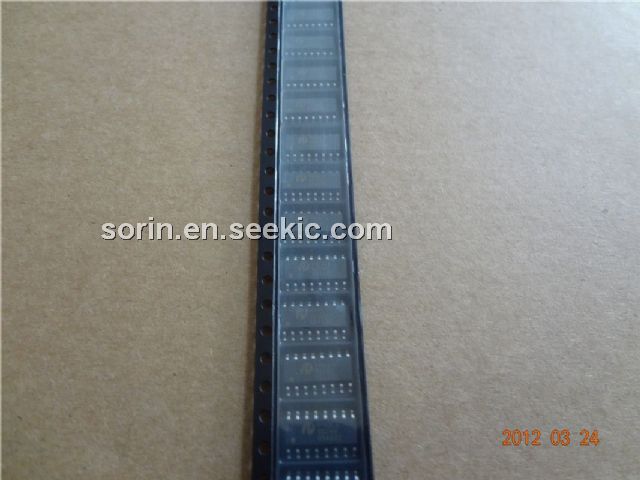

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PI90LV022WE |
Pericom |
LVDS Interface IC LVDS 2x2 Mux/Repeatr |
Data Sheet |
Negotiable |
|
||||
 |
PI90LV022WEX |
Pericom |
LVDS Interface IC LVDS 2x2 Mux/Repeatr |
Data Sheet |
Negotiable |
|
||||
