Product Summary

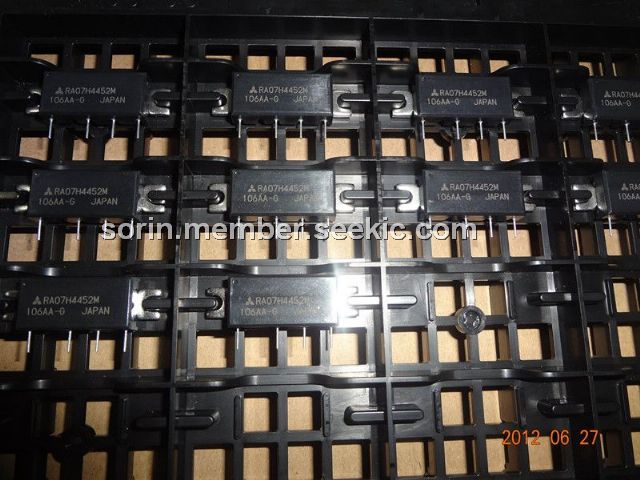

The RA07H4452M is a 7W RF MOSFET amplifier module.
Parametrics
RA07H4452M absolute maximum ratings: (1)Drain voltage: 13.2V; (2)Gate voltage: 4V; (3)Input power: 30mW; (4)Output power: 10W; (5)Operating case temperature range: -30 to 90℃; (6)Storage temperature range: -40 to 110℃.
Features
RA07H4452M features: (1)Enhancement-mode MOSFET transistors; (2)Broadband frequency range: 440 to 520MHz; (3)Low-power control current; (4)Module size: 30x10x5.4mm; (5)Linear operationg is possible by setting the quiescent drain current with the gate voltage and controlling the output power with the input power.

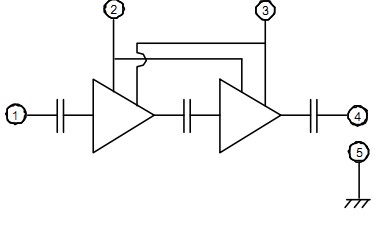

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 RA07H4452M |
Other |
|
Data Sheet |
Negotiable |
|
||||
