Product Summary

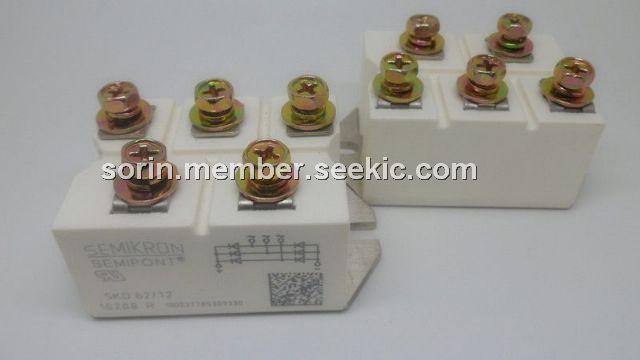

The SKD62/12 is a power bridge rectifier. Its applications include single and three phase rectifiers for power supplies, input rectifiers for variable frequency drives, rectifiers for DC motor field supplies,battery charger rectifiers.

Parametrics

SKD62/12 absolute maximum ratings: (1)ID: 60A; (2)IFSM: 500A; (3)VF: 1.8V; (4)Rthjc: 1.5℃/w; (5)Visol: 3600/3000V.

Features

SKD62/12 features: (1)Robust plastic case with screw terminals; (2)Large, isolated base plate; (3)Blocking voltage up to 1800V; (4)High surge currents; (5)Easy chassis mounting;(6)UL recognized.

Diagrams

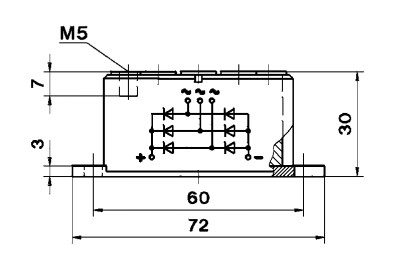

SKD62/12 diagram
