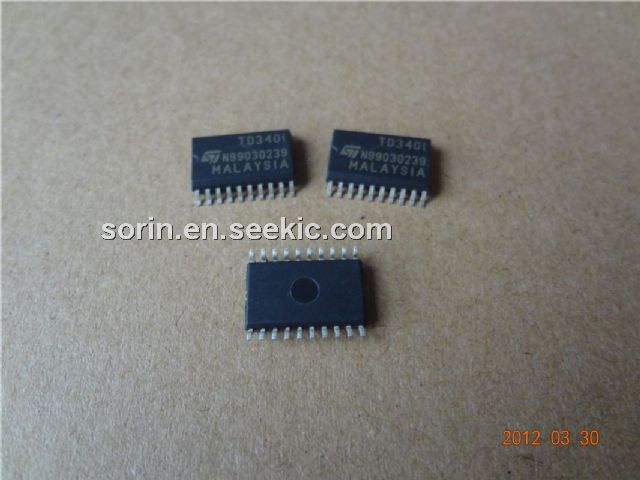

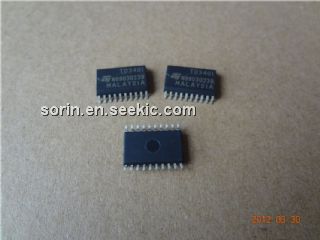

TD340I

TD340I, H-bridge quad power mosfet driver, SOP, 60V, 500mW, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	2.40 / Piece
50 ~ 100 :	2.30 / Piece
100 ~ 500 :	2.20 / Piece

PartNumber:: TD340I

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Rose's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-25

From Other Seller

Part Number:TD340I
US $2.20 - 2.40
Quantity:

piece

Product Summary

The TD340I is a quad power mosfet driver allows N-Channel Power Mosfets driving in a full H-bridge configuration and is best suited for DC Motor Control Applications. The four drivers outputs are designed to allow 25kHz MOSFET switching. The speed and direction of the motor are to be set by two pins. Voltage across themotor is controlled by low side Pulse Width Modulation (PWM). The TD340I features can be made internally when the input pin is connected to an analog signal, or it can be given directly from a digital source.

Parametrics

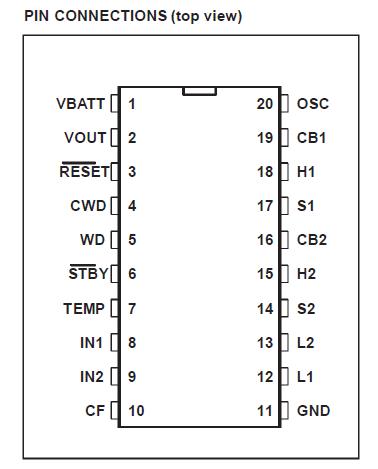

TD340I absolute maximum ratings: (1)VBatt, Positive Supply Voltage - Note 1: 60 V; (2)Pd, Power Dissipation: 500 mW; (3)Tstg, Storage Temperature: -55 to +150℃; (4)ESD, Electrostatic Discharge: 2 kV; (5)Vdigital, Voltage on pins: IN1, IN2, STBY, WD, CWD, CF, TEMP, VOUT, RESET: -0.3 to 7 V; (6)Vlowgate, Voltage on pins: L1, L2: -0.3 to 15 V; (7)Vpower, Voltage on pins: H1, H2, S1, S2, CB1, CB2 - Note 2: -0.3 to 60 V; (8)Vosc, Voltage on pin OSC: Vbatt-6.5 to Vbatt V; (9)Tj, Maximum Junction Temperature: 150℃; (10)Rhja, Thermal Resistance Junction-Ambient: 85℃/W.

Features

TD340I features: (1)quad n-channel mosfet drive; (2)integrated charge pump for highside mosfet driving; (3)very low ground emi noise; (4)motor speed and direction control (low side pwm); (5)internal or external pwm source; (6)25khz switching frequency ability; (7)synchronous high side rectification; (8)reversed battery active protection ability; (9)integrated 5v power supply for microcontroller; (10)integrated security circuits: uvlo, ovlo, watchdog; (11)60v max rating.
