Product Summary

The TDA9363PS/N1/5K is a display processor for High-end television receiver which contains the following functions: RGB control processor with Y, U and V inputs, a linear RGB input for SCART or VGA signals with fast blanking, a linear RGB input for OSD and text signals with a fast blanking or blending option and an RGB output stage with black current stabilization, which is realized with the CCC (2-point black current measurement) system. Programmable deflection processor with internal clock generation, which generates the drive signals for the horizontal, East-West (E-W) and vertical deflection. The TDA9363PS/N1/5K has various features that are attractive for the application of 16: 9 picture tubes. The circuit can be used in both single scan (50 or 60 Hz) and double scan (100 or 120 Hz) applications.

Parametrics

TDA9363PS/N1/5K absolute maximum ratings: (1)supply voltage: 9.0 V; (2)storage temperature: -25 to +150℃; (3)ambient temperature: 0 to 70℃; (4)soldering temperature: 260℃; (5)junction temperature: 150℃.

Features

TDA9363PS/N1/5K features: (1)Can be used in both single scan (50 or 60 Hz) and double scan (100 or 120 Hz) applications; (2)YUV input and linear RGB input with fast blanking; (3)Separate OSD/text input with fast blanking or blending; (4)Black stretching of non-standard luminance signals; (5)Switchable matrix for the colour difference signals; (6)RGB control circuit with Continuous Cathode Calibration (CCC), plus white point and black level offset adjustment; (7)Blue stretch circuit which offsets colours near white towards blue; (8)Internal clock generation for the deflection processing, which is synchronized by a 12 MHz ceramic resonator oscillator; (9)Horizontal synchronization with two control loops and alignment-free horizontal oscillator; (10)Slow start and slow stop of the horizontal drive pulses; (11)Low-power start-up option for the horizontal drive circuit; (12)Vertical count-down circuit; (13)Vertical driver optimized for DC-coupled vertical output stages; (14)Vertical and horizontal geometry processing; (15)Horizontal and vertical zoom possibility and vertical scroll function for application with 16 : 9 picture tubes; (16)Horizontal parallelogram and bow correction; (17)I2C-bus control of various functions; (18)Low dissipation.

Diagrams

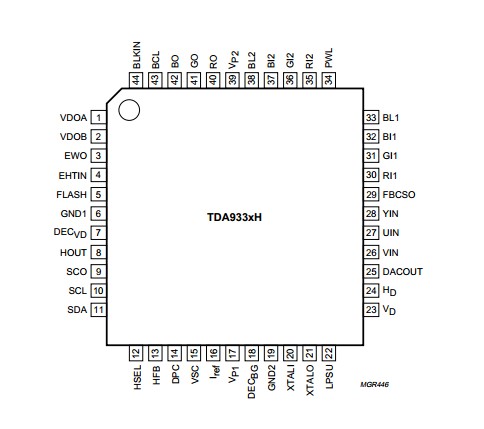

TDA9363PS/N1/5K block diagram
