Product Summary
The TPS7350QDR device ia a member of a family of micropower low-dropout (LDO) voltage regulators.It is differentiated from the TPS71xx and TPS72xx LDOs by their integrated delayed microprocessor-reset function. If the precision delayed reset is not required, the TPS71xx and TPS72xx should be considered. The RESET output of the TPS7350QDR initiates a reset in microcomputer and microprocessor systems in the event of an undervoltage condition.
Parametrics
TPS7350QDR absolute maximum ratings:(1)Input voltage range, VI, RESET, SENSE, EN:–0.3 V to 11 V; (2)Output current, IO:2 A; (3)Operating virtual junction temperature range, TJ :–55°C to 150°C; (4)Storage temperature range, Tstg:–65°C to 150°C; (5)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds :260°C.
Features
TPS7350QDR features:(1)Available in 2.5-V, 3-V, 3.3-V, 4.85-V, and 5-V Fixed-Output and Adjustable Versions; (2)Integrated Precision Supply-Voltage Supervisor Monitoring Regulator Output Voltage; (3)Active-Low Reset Signal with 200-ms Pulse Width; (4)Very Low Dropout Voltage,Maximum of 35 mV at IO = 100 mA; (5)Low Quiescent Current -Independent of Load:340 mA Typ; (6)Extremely Low Sleep-State Current,0.5 mA Max; (7)2% Tolerance Over Full Range of Load,Line, and Temperature for Fixed-Output Versions;(8)Output Current Range of 0 mA to 500 mA; (9)TSSOP Package Option Offers Reduced Component Height For Critical Applications.

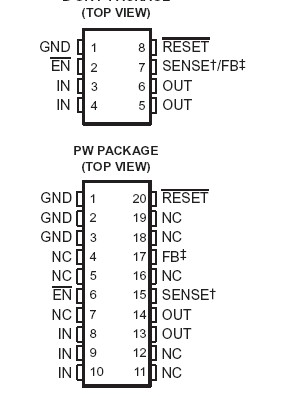

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS7350QDR |
Texas Instruments |
Low Dropout (LDO) Regulators Lowest Dropout PMOS |
Data Sheet |
|
|
||||||||||||
|
