Product Summary

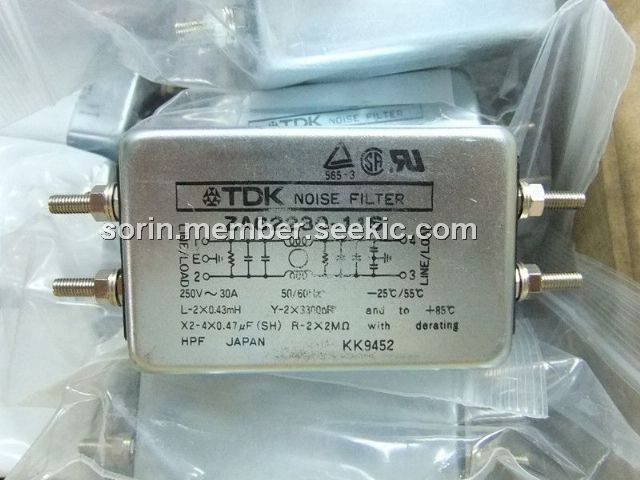

The ZAG2230-11S is an EMC filter for AC power line. Its applications include computers and other terminal devices, office automation equipment, general control devices, and other industrial devices.
Parametrics
ZAG2230-11S absolute maximum ratings: (1)Rated voltage: 250V; (2)Rated current: 30A; (3)Test voltage Eac: 1500V; (4)Insulation resistance: 100mΩ; (5)Leakage current: 0.75mA; (6)DC resistance: 9mΩ.
Features
ZAG2230-11S features: (1)Leakage current is maintaied at less than 0.75mA; (2)Efficient manufacturing makes these filters highly cost-effective; (3)It is a product conforming to RoHS directive; (4)highly reliable; (5)provide stable attenuation performance; (6)provide substantial attenuation of high-voltage pulses.

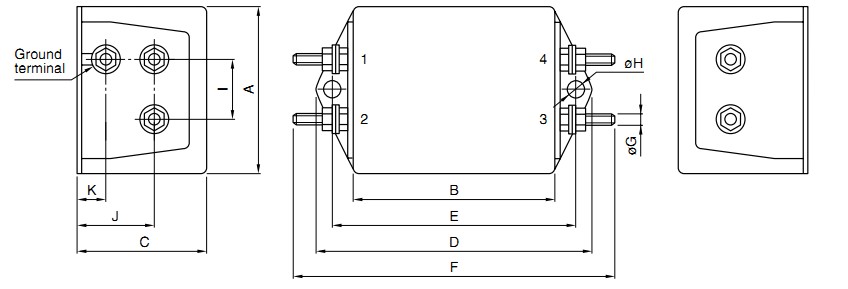

Diagrams
