Product Summary

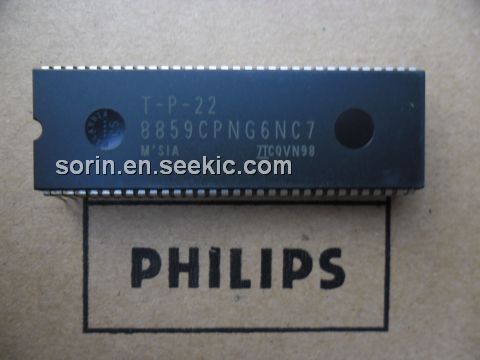

The 8859CPNG6NC7 is a TV VIAS distortion compensation IC.

Parametrics

8859CPNG6NC7 absolute maximum ratings: (1)Supply voltagem VCC: 15V; (2)Power dissipation, PD: 1.4W; (3)Input signal voltage, Ein: 5Vp-p; (4)Operating temperature, Topr: -20 to 65℃; (5)Storage temperature, Tstg: -55 to 150℃.

Features

8859CPNG6NC7 features: (1)Vertial linearity correction; (2)Vertical S correction; (3)E-W parabola; (4)E-W corner; (5)Trapezium distortion compensation.

Diagrams

8859CPNG6NC7 block diagram
