Product Summary

The BSM75GD120DN2 is an IGBT power module.

Parametrics

BSM75GD120DN2 absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)Collector-gate voltage: 1200V; (3)Gate-emitter voltage: ±20V; (4)DC collector current: 103A; (5)pulsed collector current: 206A; (6)Power dissipation per IGBT: 520W; (7)Storage temperature: -40 to 125℃.

Features

BSM75GD120DN2 features: (1)Solderable power module; (2)3-phase full-bridge; (3)Including fast free-wheel diodes; (4)Package with insulated metal base plate.

Diagrams

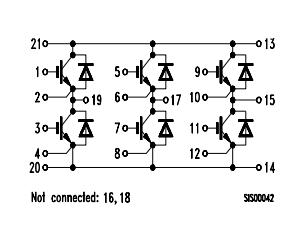

BSM75GD120DN2 diagram
