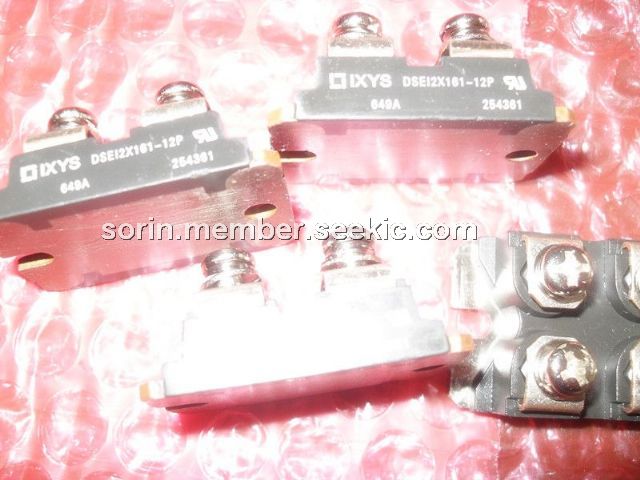

Product Summary

The DSEI2X161-12P is a fast recovery epitaxial diode. Its applications include antiparalle diode for high frequency switching devices, anti satuation diode, snubber diode.

Parametrics

DSEI2X161-12P absolute maximum ratings: (1)IFRMS: 270A; (2)IFAVM: 128A; (3)I2dt: 7200A2s; (4)TVJ: -40 to 150℃; (5)TVJM: 150℃; (6)VISOL: 2500V.

Features

DSEI2X161-12P features: (1)2 independent FRED in 1 package; (2)Isolation voltage 3600V; (3)Planar glass passivated chips; (4)Low forward voltage drop; (5)Leads suitable for PC board soldering; (6)Very short recovery time.

Diagrams

DSEI2X161-12P dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DSEI2x161-12P
DSEI2x161-12P

Ixys

Rectifiers 320 Amps 1200V

Data Sheet

Negotiable
