Product Summary

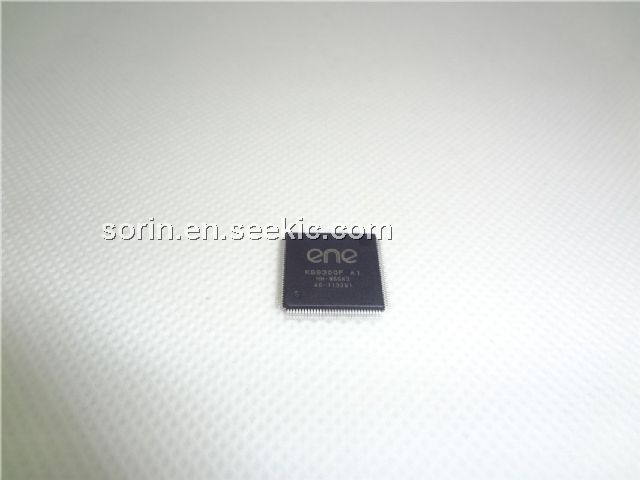

The KB930QFA1 is a 5V Programmable Sound Generator.

Features

KB930QFA1 features: (1)Full Software Control of Sound Generation; (2)Interfaces to Most 8-Bit and 16Bit Microprocessors; (3)Three Independently Programmed Analog Outputs; (4)Two 8-Bit General Purpose I/O Ports; (5)Single +5 Volt Supply.

Diagrams

KB930QFA1 block diagram
