Product Summary

The MIC39102YM is a 1A low-dropout linear voltage regulator that provides low-voltage, high-current output from an extremely small package. Utilizing Micrel’s proprietary Super βeta PNP. pass element, the MIC39102YM offers extremely low dropout (typically 410mV at 1A) and low ground current (typically 11mA at 1A). The applications of the MIC39102YM include LDO linear regulator for PC add-in cards, PowerPC power supplies, High-efficiency linear power supplies, SMPS post regulator, Multimedia and PC processor supplies, Battery chargers, Low-voltage microcontrollers and digital logic.

Parametrics

MIC39102YM absolute maximum ratings: (1)Supply Voltage (VIN): -20V to +20V; (2)Enable Voltage (VEN): +20V; (3)Storage Temperature (TS): -65℃ to +150℃; (4)Lead Temperature (soldering, 5 sec.): 260℃.

Features

MIC39102YM features: (1)Fixed and adjustable output voltages to 1.24V; (2)410mV typical dropout at 1A, Ideal for 3.0V to 2.5V conversion; Ideal for 2.5V to 1.8V conversion; (3)1A minimum guaranteed output current; (4)1% initial accuracy; (5)Low ground current; (6)Current limiting and thermal shutdown; (7)Reversed-battery protection; (8)Reversed-leakage protection; (9)Fast transient response; (10)Low-profile SOT-223 package; (11)Power SO-8 package.

Diagrams

MIC39102YM block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

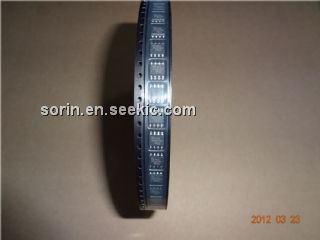

MIC39102YM
MIC39102YM


IC REG LDO ADJ 1A 8SOIC

Data Sheet

0-1: $0.98
1-25: $0.78
25-100: $0.59
100-250: $0.55
250-500: $0.53
MIC39102YM TR
MIC39102YM TR


IC REG LDO ADJ 1A 8-SOIC

Data Sheet

0-2500: $0.50
