Product Summary

The MSC1450M is a high-power pulsed transistor specifically designed for IFF avionics applications. This device is capable of withstanding a minimum 25:1 load mismatch at any phase angle under full rated conditions. The MSC1450M is housed in the unique BIGPAC package with internal input/output matching structures.

Parametrics

MSC1450M absolute maximum ratings: (1)VCC, Collector-Supply Voltage: 55 V; (2)IC, Device Current: 28 A; (3)PDISS, Power Dissipation: 910 W; (4)TJ, Junction Temperature: 250℃; (5)TSTG, Storage Temperature: -65 to + 200℃.

Features

MSC1450M features: (1)refractory/gold metallization; (2)low thermal resistance; (3)ruggedized vswr 25:1; (4)internal input / output matching; (5)metal/ceramic hermetic package; (6)pout = 450 w minimum; (7)7 db gain.

Diagrams

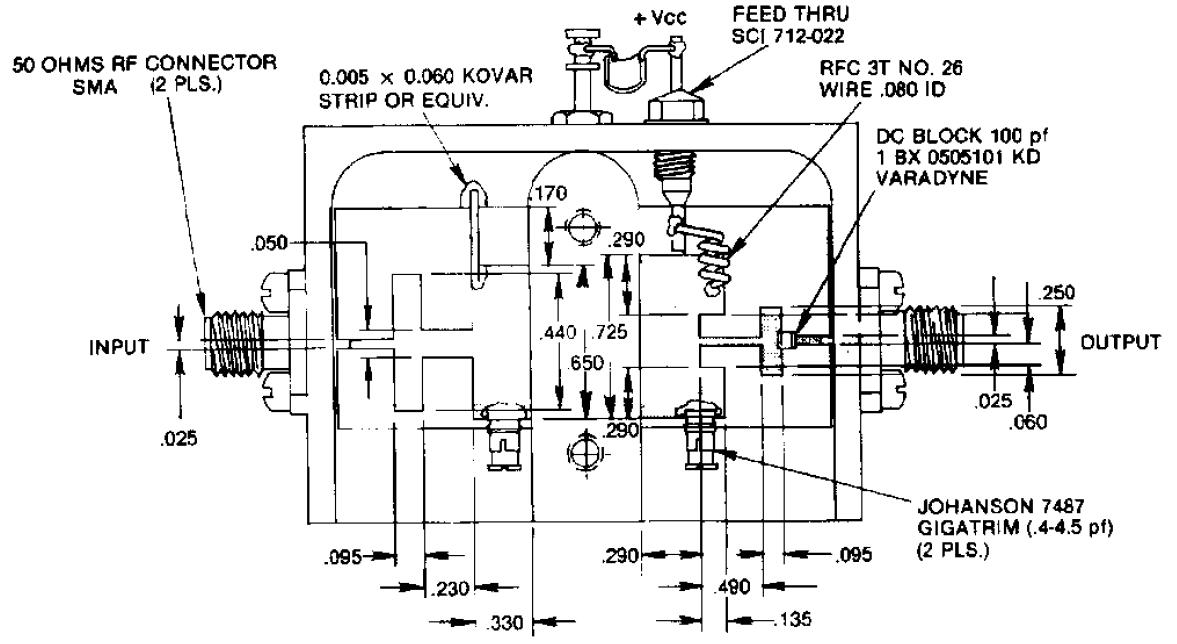

MSC1450M block diagram
