Product Summary

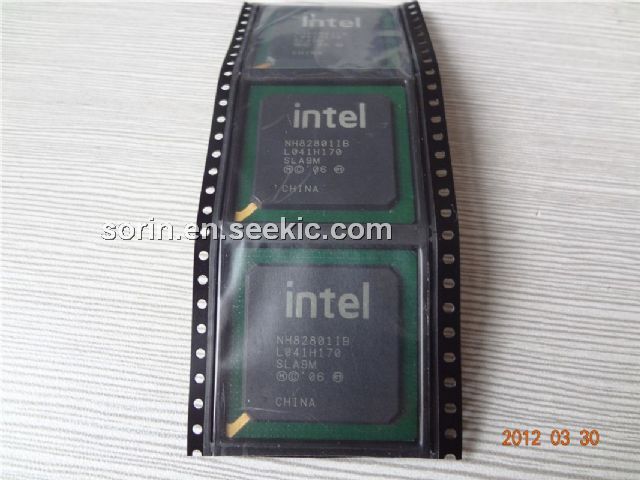

The NH82801IB-SLA9M is a Computer CPU. It can provide extensive I/O support.

Parametrics

NH82801IB-SLA9M absolute maximum ratings: (1)Voltage on any 3.3 V Pin with respect to Ground: -0.5 to Vcc3_3 + 0.5 V; (2)Voltage on any 5 V Tolerant Pin with respect to Ground (V5REF = 5 V): -0.5 to V5REF + 0.5 V; (3)1.05 V Supply Voltage with respect to VSS: -0.5 to 2.1 V; (4)1.25 V Supply Voltage with respect to VSS: -0.5V to 2.1V; (5)1.5 V Supply Voltage with respect to VSS: -0.5 to 2.1 V; (6)3.3 V Supply Voltage with respect to VSS: -0.5 to 4.6 V; (7)5.0 V Supply Voltage with respect to VSS: -0.5 to 5.5 V; (8)V_CPU_IO Supply Voltage with respect to VSS: -0.5 to 2.1 V.

Features

NH82801IB-SLA9M features: (1)Faster speed, up to 100 kbps; (2)Flexible SMBus/SMLink architecture to optimize for ASF; (3)Provides independent manageability bus through SMLink interface; (4)Supports SMBus 2.0 Specification; (5)Host interface allows processor to communicate via SMBus; (6)Slave interface allows an internal or external Microcontroller to access system resources; (7)Compatible with most two-wire components that are also I2C compatible; (8)Supports up to eight PCI interrupt pins; (9)Supports PCI 2.3 Message Signaled Interrupts; (10)Two cascaded 82C59 with 15 interrupts; (11)Integrated I/O APIC capability with 24 interrupts; (12)Supports Processor System Bus interrupt delivery.

Diagrams

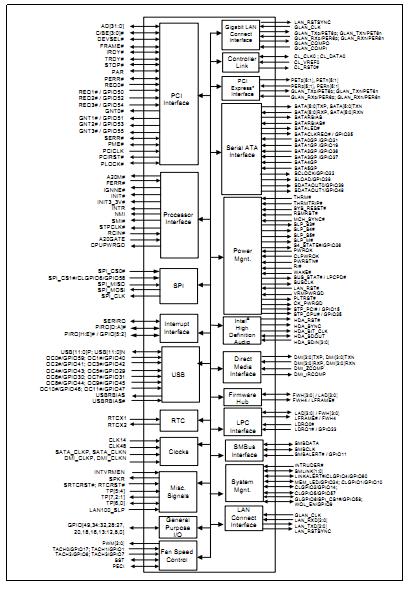

NH82801IB-SLA9M block diagram
