Product Summary

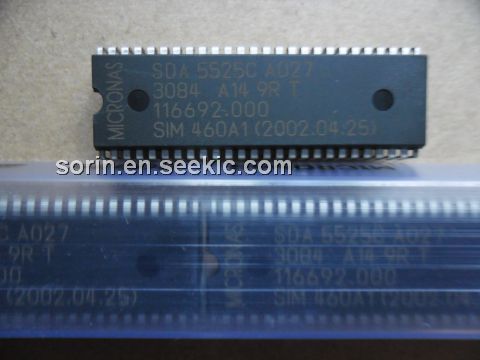

The SDA5525CA027 is a TVText Pro.
Features
SDA5525CA027 features: (1)8-Bit microcontroller core (8051 compatible) clocked at 33 MHz ; (2)(min. 360 ns); (3)Up to 128 KB internal ROM; (4)Up to 1 MB external ROM/RAM; (5)Up to 16 KB internal XRAM; (6)Single external 6 MHz crystal for all internal clock systems; (7)Simultaneous reception of TTX, VPS/PDC and WSS (16:9); (8)New digital slicer with automatic distortion detection and com-; (9)pensation for high-quality VBI-line acquisition even under bad signal conditions; (10)0.25 μm CMOS technology for high performance and low power dissipation (2.5/3.3 V); (11)various power save modi (down to < 5 mA possible); (12)Two 16-Bit timers, one watch-dog- and one IR control timer; (13)PWM unit (two channels 14 Bit, six channels 8 Bit); (14)ADC (four channels 8 Bit); (15)UART interface.

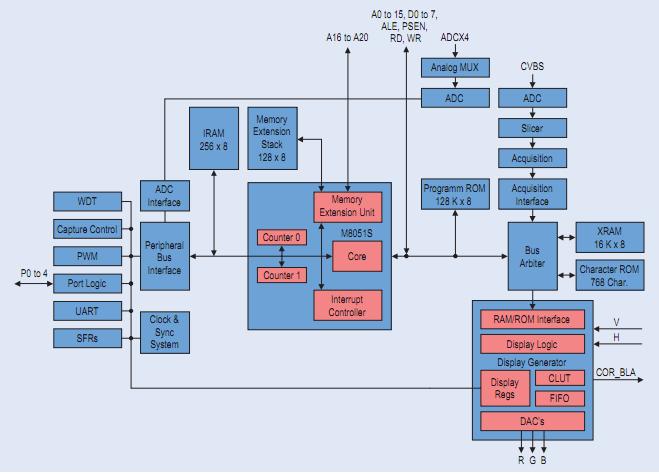

Diagrams
