Product Summary
The SI9241AEY-T1-E3 is a monolithic bus transceiver designed to provide bidirectional serial communication in automotive diagnostic applications. The device incorporates protection against overvoltages and short circuits to VBAT. The transceiver pin is protected and can be driven beyond the VBAT voltage. The SI9241AEY-T1-E3 is built on the Vishay Siliconix BiC/DMOS process. An epitaxial layer prevents latchup.
Parametrics
SI9241AEY-T1-E3 absolute maximum ratings: (1)Voltage On VBAT: -24 to 45V; (2)Voltage K: -16 to (VBAT + 1)V; (3)Voltage Difference V(VBAT, K): 55V; (4)Voltage or Max. Current On Any Pin (Except VBAT , K): -0.3 to (VDD +0.3 V) or 10 mA; (5)Voltage on VDD: 7V; (6)K Pin Only, Short Circuit Duration (to VBAT or GND): Continuous; (7)Operating Temperature (TA): -40 to 125℃; (8)Junction and Storage Temperature: -55 to 150℃; (9)Thermal Impedance (θJA): 125℃/W.
Features
SI9241AEY-T1-E3 features: (1)Operating Power Supply Range 6 V ≤ VBAT ≤ 36 V; (2)Reverse Battery Protection Down to VBAT ≥ -24 V; (3)Standby Mode With Very Low Current Consumption IBAT(SB) = 1μA at VDD = 0.5 V; (4)Low Quiescent Current in OFF Condition IBAT = 120 μA and IDD ≤ 10 A; (5)ISO 9141 Compatible; (6)Overtemperature Shutdown Function For K Output; (7)Defined K Output OFF for Open GND; (8)Defined Receive Output Status for Open K Input; (9)Defined K Output OFF for TX Input Open; (10)Open Drain Fault Output; (11)2 kV ESD; (12)Typical Transmit Speeds of 200 kBaud.

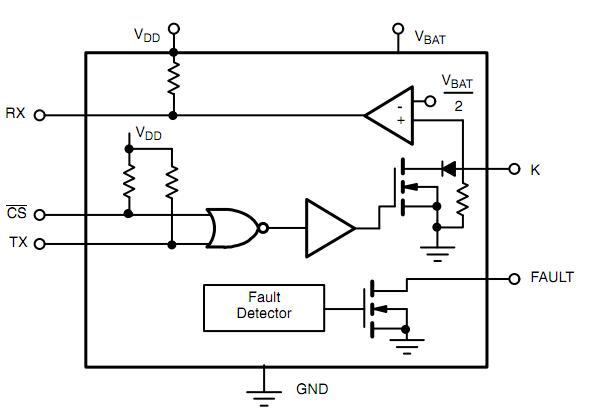

Diagrams
