Product Summary
The STK392-040 is a convergence correction circuit IC for video projectors. Its applications include video projectors.
Parametrics
STK392-040 absolute maximum ratings: (1)Maximum supply voltage: ±50V; (2)Maximum collector current: 70A; (3)Thermal resistance: 18℃/w; (4)Junction temperaure: 150℃; (5)Operating substrate temperature: 125℃; (6)Storage temerature: -30 to 125℃.
Features
STK392-040 features: (1)3 output amplifier circuit in a single package; (2)High absolute maximum supply voltage; (3)Low thermal resistance; (4)High temperture stability; (5)Sepatrate predriver and output stage supplies; (6)Output stage supply switching for high-performance designs.

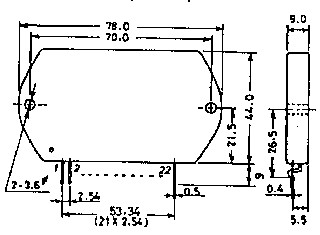

Diagrams
 |
