Product Summary

The STPS160H100TV is a high voltage power schottky recrifier.

Parametrics

STPS160H100TV absolute maximum ratings: (1)VRRM, repetitive peak reverse voltage: 100V; (2)IF, RMS forward current: 180A; (3)Average forward current: 80A; (4)IFSM, surge non repetitive forward current: 1000A; (5)IRRM, Repetitive peak reverse current: 2A.

Features

STPS160H100TV features: (1)Negligible switching losses; (2)High junction temperature capability; (3)Low leakage current; (4)Good trade off between eakage current and forward voltage drop; (5)Avalanche rated; (6)Low induction package; (7)Insulated package.

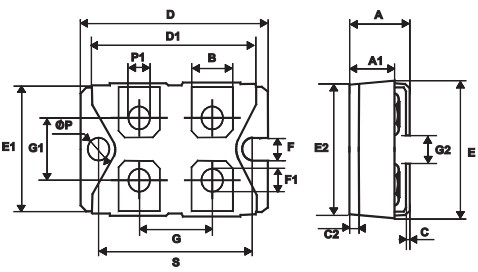

Diagrams

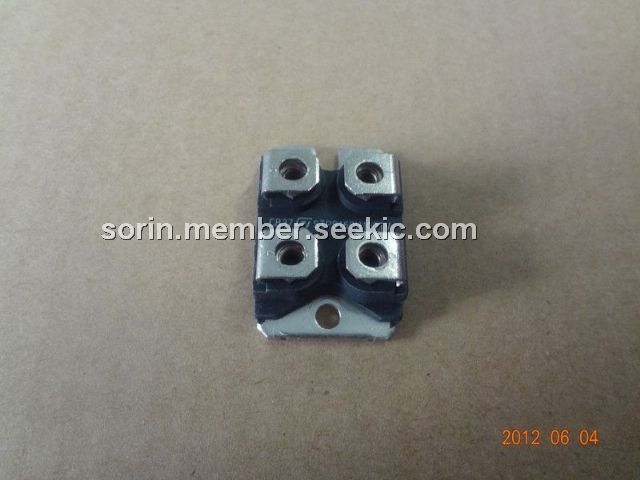

STPS160H100TV diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STPS160H100TV
STPS160H100TV
STMicroelectronics
Schottky (Diodes & Rectifiers) 2X80 Amp 100 Volt
Data Sheet
0-1: $16.84
1-10: $15.90
10-100: $14.11
100-250: $13.33
