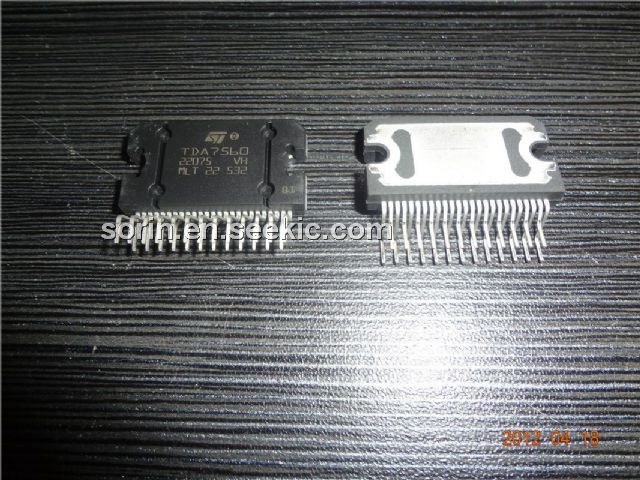

Product Summary

The TDA7560 is a breakthrough BCD (Bipolar / CMOS / DMOS) technology class AB Audio Power Amplifier in Flexiwatt 25 package. The TDA7560 is designed for high power car radio. The fully complementaryP-Channel/N-Channel output structure allows a rail to rail output voltage swing which, combined with high output current and minimised saturation losses sets new power references in the car-radio field, with unparalleled distortion performances.

Parametrics

TDA7560 absolute maximum ratings: (1)Operating Supply Voltage: 18 V; (2)DC Supply Voltage: 28 V; (3)Peak Supply Voltage (t = 50ms): 50 V; (4)Output Peak Current: Repetitive (Duty Cycle 10% at f = 10Hz): 9A, Non Repetitive (t = 100μs): 10A; (5)Power dissipation, (Tcase =70℃): 80 W; (6)Junction Temperature: 150℃; (7)Storage Temperature: -55℃ to 150℃.

Features

TDA7560 features: (1)superior output power capability:4 x 50W/4Ω MAX., 4 x 45W/4Ω EIAJ, 4 x 30W/4Ω @14.4V, 1KHz, 10%, 4 x 80W/2Ω MAX., 4 x 77W/2Ω EIAJ, 4 x 55W/2Ω @14.4V, 1KHz, 10%; (2)excellent 2Ω driving capability; (3)hi-fi class distortion; (4)low output noise; (5)st-by function; (6)mute function; (7)automute at min. supply voltage detection; (8)low external component count:internally fixed gain (26dB), no external compensation, no bootstrap capacitors; (9)on board 0.35A high side driver.

Diagrams

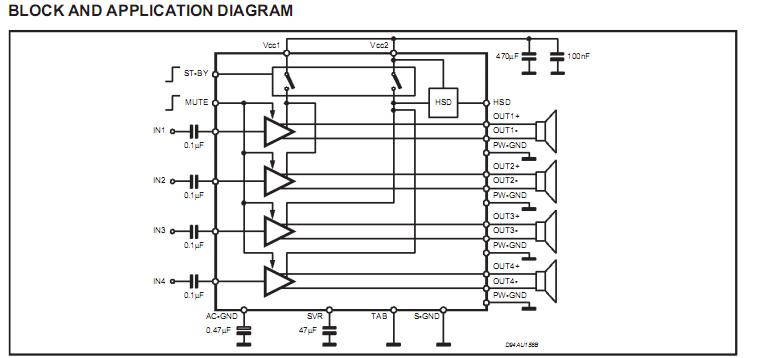

TDA7560 block diagram
