Product Summary
The TSM103WIDT is a dual operational amplifier and voltage reference. The TSM103WIDT is a monolithic IC that includes one independent op-amp and another op-amp for which the non-inverting input is wired to a 2.5V fixed Voltage Reference. The TSM103WIDT offers both space and cost savings in many applications such as power supply management or data acquisition systems.
Parametrics
TSM103WIDT absolute maximum ratings: (1)Supply Voltage, VCC: 36 V; (2)Differential Input Voltage, Vid: Vcc + 0.6 V; (3)Input VoltageL, Vi: -0.3 to Vcc + 0.3 V; (4)Storage temperature range, Tstg: -65 to + 150℃; (5)Continuous cathode current range, Ik: -100 to 150 mA; (6)Maximum Junction Temperature, Tj: 150℃; (7)Thermal Resistance Junction to Ambient (SO package), Rthja: 175 ℃/W; (8)Maximum Lead Temperature (10 seconds maximum), Tl: 260℃; (9)Electrostatic Discharge Protection, ESD: 1.5 kV.
Features
TSM103WIDT features: (1)Low input offset voltage: 0.5mV typ.; (2)Low supply current: 350μA/op. (@ VCC = 5V); (3)Medium bandwidth (unity gain): 0.9MHz; (4)Large output voltage swing: 0V to (VCC - 1.5V); (5)Input common mode voltage range includes ground; (6)Wide power supply range: 3 to 32V ±1.5 TO ±16V; (7)1.5kV ESD protection; (8)Voltage reference; (9)Fixed output voltage reference 2.5V; (10)±0.4% OR ±0.7% voltage precision; (11)Sink current capability: 1 to 100mA; (12)Typical output impedance: 0.2Ω.

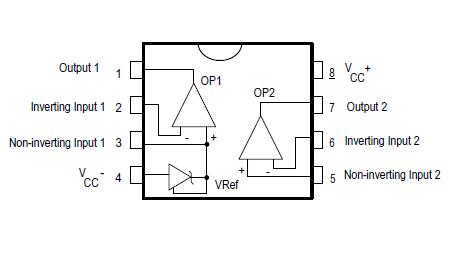

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TSM103WIDT |
STMicroelectronics |
Operational Amplifiers - Op Amps Dual Op Amp Vltg Ref |
Data Sheet |
|
|
|||||||||||||||||||
