Product Summary
The ZHC2203-11 is an EMC filter for AC power supply. The applications include Computers and peripheral terminals, general control devices, office automation equipment, and other industrial devices.
Parametrics
ZHC2203-11 absolute maximum ratings: (1)Rated voltage Eac: 250V; (2)Rated current: 3A; (3)Test voltage Eac: 2500V; (4)Insulation resistance: 100; (5)Leakage current: 1A; (6)Operating temperature range: -25 to 85℃; (7)dc resistance: 200mΩ.
Features
ZHC2203-11 features: (1)The ZHC-11 series EMC filters exhibit outstanding attenuation characteristics with respect to both differential mode and common- mode noise components in the MF and HF bands; (2)The withstand voltage between line and ground is AC.2500V; (3)Leakage current is maintained at less than 1mA; (4)Efficient manufacturing makes these filters highly cost-effective.

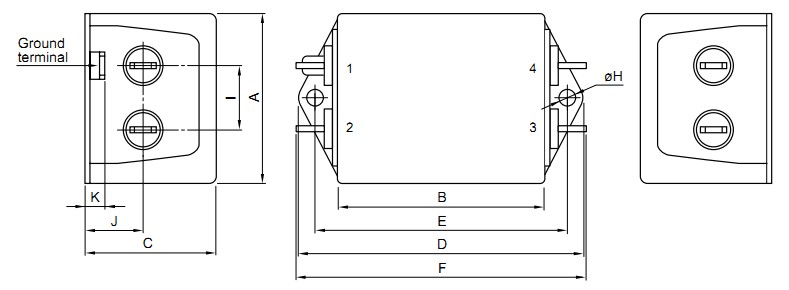

Diagrams
