Product Summary
The PM75B5LA060 is an intelligent power module. Its applications include photo voltaic power conditioner.
Parametrics
PM75B5LA060 absolute maximum ratings: (1)Collector-emitter voltage: 600V; (2)Collector current: 75A; (3)Collector current: 150A; (4)Collector dissipation: 390W; (5)Junction temperature: -20 to 150℃.
Features
PM75B5LA060 features: (1)adopting new 5th generation IGBT; (2)Over-temperature protection by detecting Tj of the STBT chips and erorr ouput is possible from all each conservation upper and lower arm of IPM; (3)New small package.

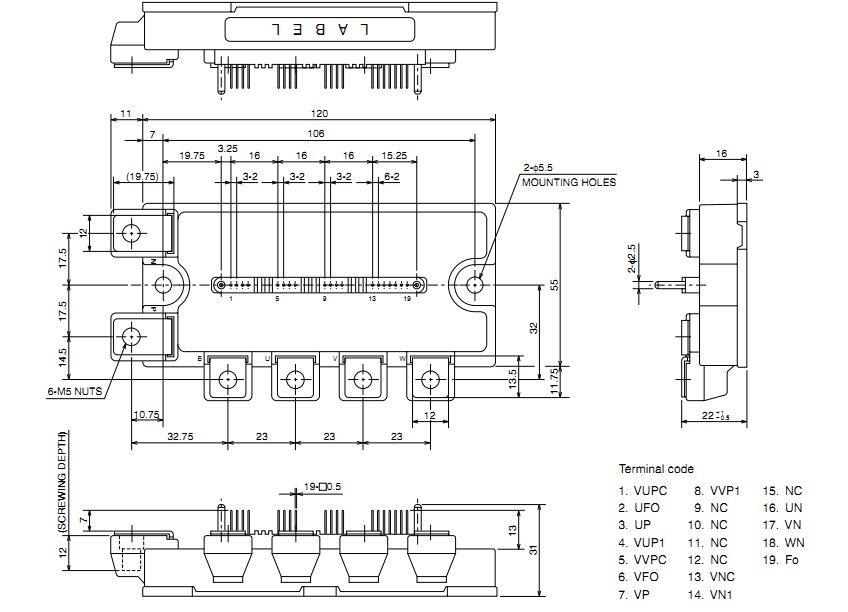

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

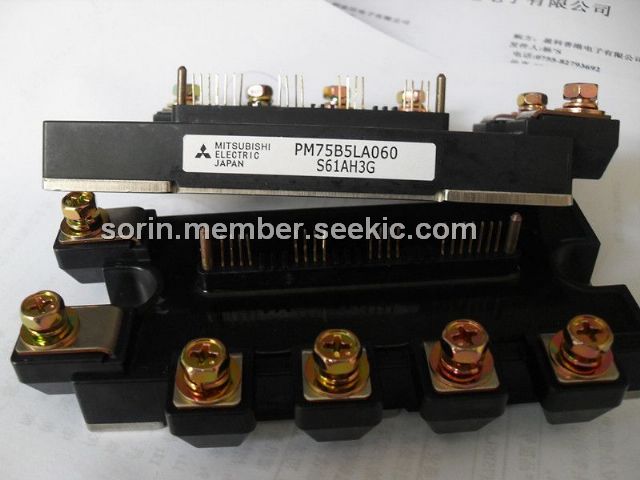

![]() PM75B5LA060 |
![]() |
![]() MOD IPM L-SERIES 600V 75A |
![]() Data Sheet |
![]()
|
|
||||||||||||||
